specification

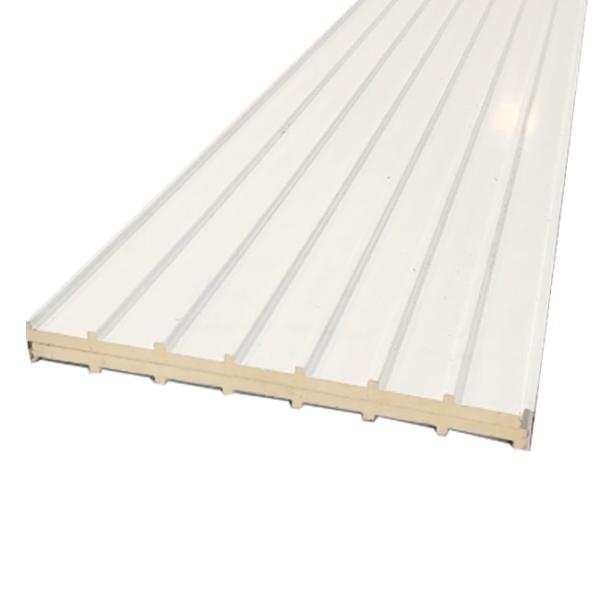

| Material | Polyurethane+Aluminum panel |
| Fire-proof level | B1 B2 B3 |
| Core material thickness | 30/50mm |
| Core material density | 38-45kg/m³ |
| Aluminum panel thickness | 0.6mm |
| Effective width | 1000mm |
| Temperature range | -55~160℃ |
| Panel length | custom |
| Color of aluminum plate | Silver gray brown or customizable |
| Characteristic | Good temp-keeping and heat insulation |
| Application | Villa, sun room, workshop, roof board room |
Installation mode
● Specifications variety, bulk weight range: (40-60kg /m3); Length range: (0.5 m - 4 m); Width range: (0.5 m - 1.2 m); Thickness range: (50 mm, 75 mm, 100 mm, 120 mm, 150 mm)
● High cutting accuracy, thickness error of 0.5mm, so as to ensure the smoothness of the finished product surface.
● Fine foam, uniform hole.
● Light bulk weight, can reduce the self-weight of the finished product, 30-60% lower than the traditional product.
● High compressive strength, can withstand great pressure in the process of manufacturing finished products.
Advantage
Match full accessories
Match the panel side end cap and start tube together, it is easy for install, and fast install
Custom color and panel length
The color could be custom, the hot sale color is black/white/dark grey/brown.
Panel length can be customized to the actual length to suit your needs.
good adhesion, high toughness, strong impact resistance, strong pollution resistance, smooth coating, easy to clean.
wide range of colors, bright and beautiful, good texture. There are monochrome paint, metal paint, can meet the different requirements of customers.
